Description

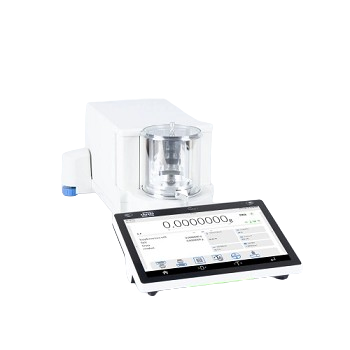

The UYA 5Y ultra-microbalance is a professional instrument intended for the most demanding applications. The innovative SYNERGY LAB line guarantees the highest quality, precision and reliability. The best possible repeatability and USP regulations conformity
The best weighing accuracy and repeatability – with sd ≤ 1d combined with USP regulations conformity (Section 41 and 1251) make 5Y balances a new standard for mass measurement quality. Stainless steel detachable weighing chamber
| SPECIFICATION | ||
|---|---|---|
| MODEL No. | UYA 2.5Y | |
| Maximum Capacity [Max] | 2.1 g | |
| Minimum load | 10 µg | |
| Readability [d] | 0.1 µg | |
| Tare range | -2.1 g | |
| Standard repeatability [5% Max] | 0.15 µg | |
| Standard repeatability [Max] | 0.35 µg | |
| Standard minimum weight (USP) | 0.3 mg | |
| Standard minimum weight (U=1%, k=2) | 0.03 mg | |
| Permissible repeatability [5% Max] | 0.35 µg | |
| Permissible repeatability [Max] | 0.6 µg | |
| Linearity | ±1.5 µg | |
| Eccentric load deviation | 1.5 µg | |
| Stabilization time | 10 to 20 s | |
| Adjustment (Calibration) | Internal (automatic) | |
| OIML Class | I | |
| Display | 5.7” resistive colour touchscreen | |
| Communication interface | 2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi® | |
| Power supply | 100 ÷ 240 V AC 50 / 60 Hz | |
| Power consumption max. | 10 W | |
| Operating temperature | +10 ÷ +40 °C | |
| Operating temperature change rate | ±0.3°C/1h (±1°C/8h) | |
| Relative humidity | 40% ÷ 80% | |
| Relative humidity change rate | ±1%/h (±4%/8h) | |
| Weighing chamber dimensions | ø118×35 mm | |
| Weighing pan dimensions | ø50 mm | |
| Packaging dimensions | 660×660×455 mm | |
