PS R2

Description

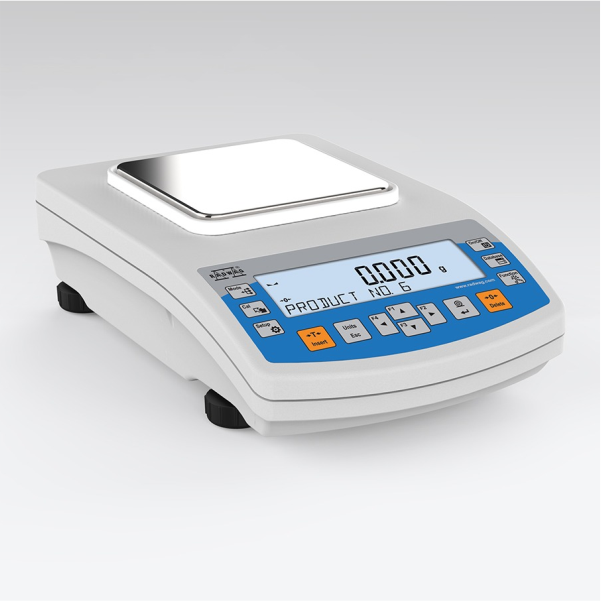

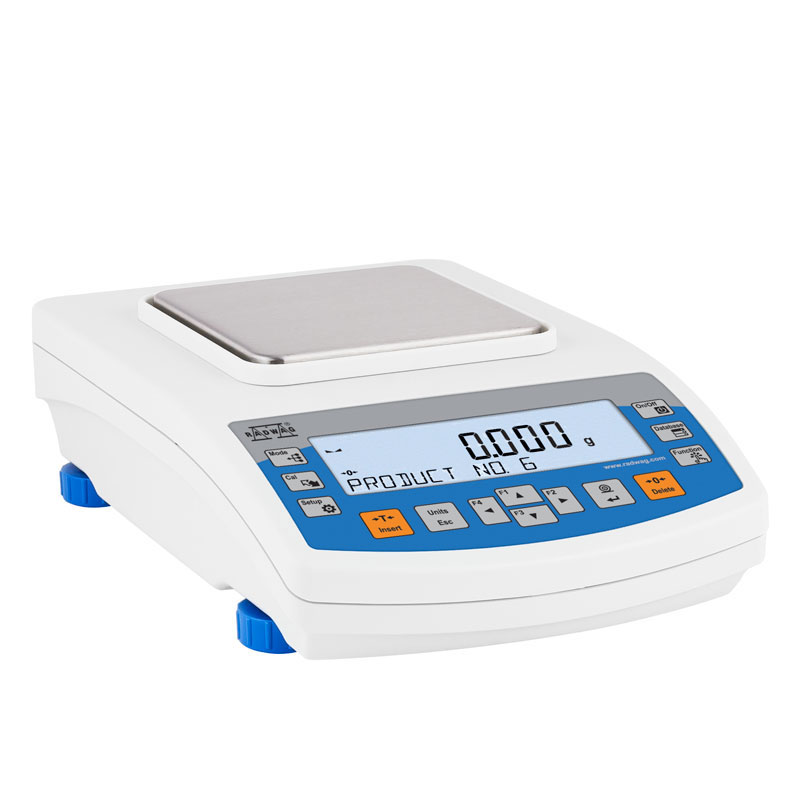

PS.R2 series balances represent a new standard of precision balances. They feature a new, readable LCD display which allows a clearer presentation of the weighing result. Besides, the display has a new text information line allowing to show additional messages and data, e.g. product name or tare value. New PS.R2 balances, like previously designed PS series balances, have pans in two possible dimensions: 128×128 mm or 195×195 mm. balances with a smaller pan have a draft shield. The balance precision and the measurement accuracy is assured by automatic internal adjustment, which takes into consideration temperature changes and time flow.

DATABASES IN R SERIES BALANCES:-
The information system is based on 5 databases, which allows for several users to work with several products databases, and the registered weighing results can be subject to further analysis.

The data is registered in 5 databases:

  Users (up to 10 users),;

  Products (up to 1000 products),;

  Weighments (up to 50 00 weighments),;

  Packaging (up to 100 packaging types),;

  Tares (up to 100 tares),;

  ALIBI memory (up to 100 000 weighments).;

SPECIFICATION
MODEL No. PS 200 / 2000.R2 PS 210.R2 PS 600.R2 PS 1000.R2 PS 3500.R2
Maximum Capacity [Max] 200 / 2000 g 210 g 600 g 1000 g 3500 g
Minimum load 0.02 g 0.02 g 0.02 g 0.02 g 0.5 g
Readability [d] 0.001 / 0.01 g 0.001 g 0.001 g 0.001 g 0.01 g
Tare range -2000 g -210 g -600 g -1000 g -3500 g
Repeatability [Max] 0.001 / 0.01 g 0.001 g 0.0015 g 0.0015 g 0.008 g
Repeatability [5% Max] 0.0005 / 0.005 g 0.0005 g 0.0005 g 0.0005 g 0.005 g
Linearity ±0.002 / 0.02 g ±0.002 g ±0.003 g ±0.003 g ±0.02 g
Stabilization time max 2 / 1.5 s max 2 s max 2 s max 2 s max 1.5 s
Adjustment (Calibration) internal (automatic) internal (automatic) internal (automatic) internal (automatic) internal (automatic)
Display LCD (Backlit) LCD (Backlit) LCD (Backlit) LCD (Backlit) LCD (Backlit)
Communication interface 2×RS232, USB-A, USB-B, Ethernet, Wi-Fi® 2×RS232, USB-A, USB-B, Ethernet, Wi-Fi® 2×RS232, USB-A, USB-B, Ethernet, Wi-Fi® 2×RS232, USB-A, USB-B, Ethernet, Wi-Fi® 2×RS232, USB-A, USB-B, Ethernet, Wi-Fi®
Power supply 100 ÷ 240 V AC 50 / 60 Hz 100 ÷ 240 V AC 50 / 60 Hz 100 ÷ 240 V AC 50 / 60 Hz 100 ÷ 240 V AC 50 / 60 Hz 100 ÷ 240 V AC 50 / 60 Hz
Operating temperature +10 ÷ +40 °C +10 ÷ +40 °C +10 ÷ +40 °C +10 ÷ +40 °C +10 ÷ +40 °C
Weighing pan dimensions 128×128 mm 128×128 mm 128×128 mm 128×128 mm 195×195 mm
Packaging dimensions 470×380×336 mm 470×380×336 mm 470×380×336 mm 470×380×336 mm 470×380×336 mm
Net Weight 3.9 kg 3.7 kg 3.9 kg 3.9 kg 4.5 kg
Gross weight 5.5 kg 5.3 kg 5.5 kg 5.5 kg 6 kg
