Description

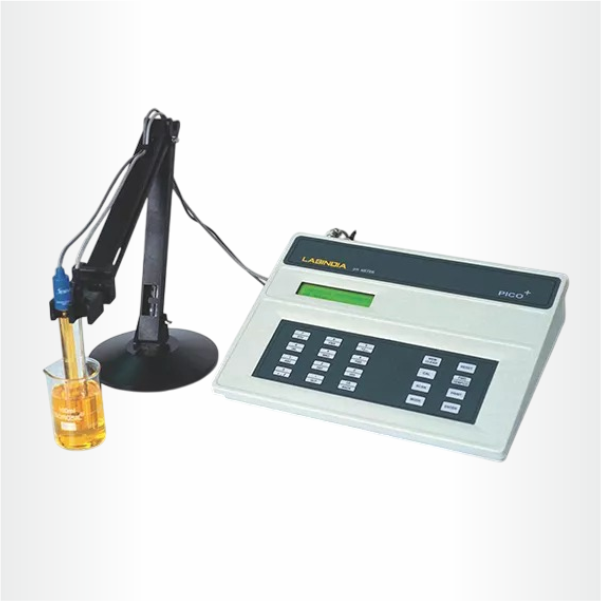

This bench-top pH meter is an ideal help in every laboratory for routine or R&D level measurement. This very handy instrument measures pH, mV and has 40- point data memory storage. The pH meter complies to USP and DIN standards.
Pico pH Instrument has Standard mode and GLP mode, 40 data readings can be stored, printed & scanned on display. For GLP mode, additional entries of sample name & ID number can be stored. The optional Data logging function enables user to store; 24 data points consisting of pH, temperature & time readings. The user can have a 3 point or 5 point calibration protocol. Password protection for calibration data and stored readings gives added benefit.
| SPECIFICATION | |
|---|---|
| Parameter | Pico Ph Meter |
| pH range | -2.00 to 19.999 |
| Resolution | 0.1 / 0.01 / 0.001 pH |
| Relative Accuracy | ± 0.001 pH |
| Slope | 3 points 80% to 120%, 5 points 90% to 105% |
| Sensor | Combination pH electrode |
| Calibration | Auto-calibration and printout of Calibration Report. |
| Millivolt |
mv range – 0 to ±1999.9 mv Resolution – ±0.1 mv Relative accuracy – ±0.2 mv |
| Temperature |
Temperature range – 0 to 150°C Resolution – 0.1°C Relative accuracy – ±0.2°C Sensor – RTD PT 100 Temp. Compensation – Auto / Manual |
| Input | 1 BNC, 1 Banana, 1 ATC – PT 100 |
| Input Impedance | > 1012 ohms |
| Output |
a) Printer – Parallel port b) RS 232C – PC connectivity |
| Keyboard | Alphanumeric splash water-proof Polyester soft keys. |
| Display | 20 x 2 line back lighted Liquid Crystal Display (LCD). |
| Electrode diagnosis | Yes |
| Data Storage | Non-Volatile memory. |
| Report format |
a) Report of selected pH & mV reading with temperature b) Calibration report c) Data table & Graph (optional) |
| Power requirement | 230 V AC, ±10% / 50Hz |
| Environmental Operating Conditions |
a) Operation: Indoor b) Temperature: Ambient to 45°C c) Relative humidity: 5 to 90% non-condensing |
| Dimensions | 305 x 220 x 70 mm (L x D x H) |
| Weight | 2.2 kgs |
