Description

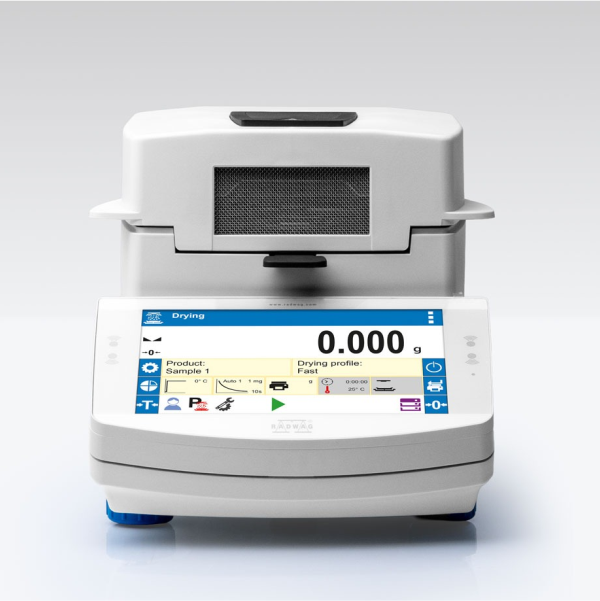

Moisture analyzer is a laboratory measuring instrument intended to determine relative humidity for small samples of different materials. MA.R series redefines moisture analyzers standards. This series has been equipped with brand new readable LCD display providing an extra text line for information such as supplementary messages and data, e.g. product name or tare value. The moisture analyzer, using respective pictograms, signalizes currently activated mode, computer connection and functions, both balance and service ones.
| SPECIFICATION | |||
|---|---|---|---|
| MODEL No. | MA 50/1.R | MA 50.R | MA 210.R |
| Maximum Capacity [Max] | 50 mg | 50 mg | 210 mg |
| Readability [d] | 0.1 mg | 1 mg | 1 mg |
| Tare range | -50 g | -50 g | -210 g |
| Adjustment (Calibration) | External (automatic) | External (automatic) | External (automatic) |
| Display | LCD (Backlit) | LCD (Backlit) | LCD (Backlit) |
| Communication interface | 2×RS232, 2×USB-A, 2×USB-B, Wi-Fi® | 2×RS232, 2×USB-A, 2×USB-B, Wi-Fi® | 2×RS232, 2×USB-A, 2×USB-B, Wi-Fi® |
| Power supply | 100 ÷ 240 V AC 50 / 60 Hz | 100 ÷ 240 V AC 50 / 60 Hz | 100 ÷ 240 V AC 50 / 60 Hz |
| Power consumption max. | 4 W | 4 W | 4 W |
| Operating temperature | +10 ÷ +40 °C | +10 ÷ +40 °C | +10 ÷ +40 °C |
| Maximum sample weight | 50 g | 50 g | 210 g |
| Heating module | IR emitter | IR emitter | IR emitter |
| Heating module power | 450 W | 450 W | 450 W |
| Moisture content repeatability | ±0.05% (sample ~2g), ±0.01% (sample ~10g) | ±0.05% (sample ~2g), ±0.01% (sample ~10g) | ±0.05% (sample ~2g), ±0.01% (sample ~10g) |
| Moisture content readability | 0.0001 % | 0.001 % | 0.001 % |
| Drying temperature range | max 160 °C | max 160 °C | max 160 °C |
| Drying method | 4 drying profiles (standard, fast, step, mild) | 4 drying profiles (standard, fast, step, mild) | 4 drying profiles (standard, fast, step, mild) |
| Finish mode | 4 modes (automatic, manual, time-defined, user-defined) | 4 modes (automatic, manual, time-defined, user-defined) | 4 modes (automatic, manual, time-defined, user-defined) |
| Maximum sample height | 20 mm | 20 mm | 20 mm |
| Weighing pan dimensions | ø90, h=8 mm | ø90, h=8 mm | ø90, h=8 mm |
| Packaging dimensions | 470×380×336 mm | 470×380×336 mm | 470×380×336 mm |
| Net Weight | 4.8 kg | 4.8 kg | 4.8 kg |
| Gross weight | 6.3 kg | 6.3 kg | 6.3 kg |
| Additional functions | sample traceability | sample traceability | sample traceability |
