Description

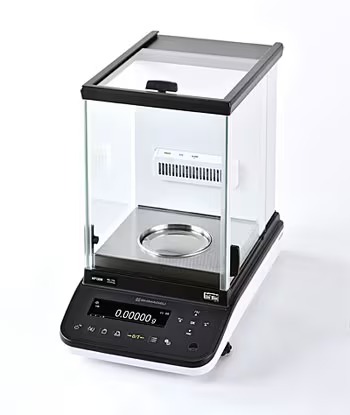

The AP Holder compatible with a variety of weighing containers is provided standard, and static electricity is properly removed from the bottom of the container, resulting in easier operation.
If the AP Holder and the STABLO-AP ionizer are used together, static electricity can be quickly removed from the entire test chamber, including the surfaces of glass containers, which helps to decrease the weighing time and improve reliability.
High Speed – Fast weighing response:-
The response time for trace measurements (from 1 mg) is reduced to about 2 seconds. This significantly improves weighing efficiency.
Strees Free:-
The STABLO-AP ionizer can be mounted. This eliminates the influence of static electricity, achieving reliable measurements in a simpler procedure.
For Regulation-for the Pharmaceutical Industry:-
Interlocking with LabSolutions Balance enables compliance with a variety of regulations for measurement data integrity, including ISO 17025 for testing laboratories, ISO 9001 and ISO 14001 for the manufacturing industry, and GLP/GMP and the United States Pharmacopeia (USP) for the pharmaceutical industry.
For HPLC:-Functions are included for the preparation of buffer solutions used in HPLC. As a result, the operation can be performed accurately and easily, even by non-specialists
| SPECIFICATION | |||||
|---|---|---|---|---|---|
| MODEL No. | AP 225W | AP 125WD | AP 124W | AP 224W | AP 324W |
| Maximum Capacity [Max] | 220 g | 220 g / 102 g | 120 g | 220 g | 320 g |
| Minimum Display | 0.01 mg | 0.01 mg / 0.1 mg | 0.1 mg | 0.1 mg | 0.1 mg |
| External Calibration Weight Range | 95 to 220.00900 g (220 g) | 95 to 220.00900 g (220 g) | 45 to 120.00900 g (100 g) | 95 to 220.00900 g (220 g) | 95 to 220.00900 g (220 g) |
| Repeatability (Standard deviation) | 0.015 mg (to 20 g) 0.03 mg (to 100 g) |
0.1 mg / 0.05 mg | 0.1 mg | 0.1 mg | 0.15 mg |
| Repeatability (Low Loads) | 0.01 mg (≥5 g) | – | 0.01 mg (≥5 g) | 0.01 mg (≥10 g) | 0.01 mg (≥20 g) |
| Minimum weight | 20 mg | 20 mg | 200 mg | 200 mg | – |
| Linearity weight | ±0.1 mg | ±0.2 mg / ±0.1 mg | ±0.2 mg | ±0.2 mg | ±0.3 mg |
| Response Time for trace Measurement | 2 sec | 2 sec | 2 sec | 2 sec | 2 sec |
| Response Time | 8 sec | 2 sec / 8 sec | 2 sec | 2 sec | 2 sec |
| USB Host (Type A) | Included | Included | Included | Included | Included |
| USB Device (Type B) | Included | Included | Included | Included | Included |
| Ionizer | – | – | Optional | – | – |
| Operating Temp | 5 to 40 °C · 20 to 85% | ||||
| Sensitivity Stability vs Temp | ø91 mm | ||||
| Body Dimensions | Approx. 212 (W) × 411 (D) × 345 (H) mm | Approx. 212 (W) × 367 (D) × 345 (H) mm | |||
| Weight | Approx. 7.9 kg | – | Approx. 7.0 kg | – | – |
| Display | OEL display (dot matrix) | ||||
| Input/Output Terminal | RS-232C (D-sub 9P plug), USB Host (Type A), USB Device (Type B), Ionizer | ||||
