Based on time tested EMFC/MFRT Technology, these range of high accuracy Balances feature a bright Green VFD Display and attractive Draft Shield. A comprehensive range makes it an ideal and yet affordable choice for use in Jewellery & Laboratory Weighing.
Display: Customer display,
Connectivity: RS-232 interface for easy computer connectivity
Power: AC/DC Adaptor.

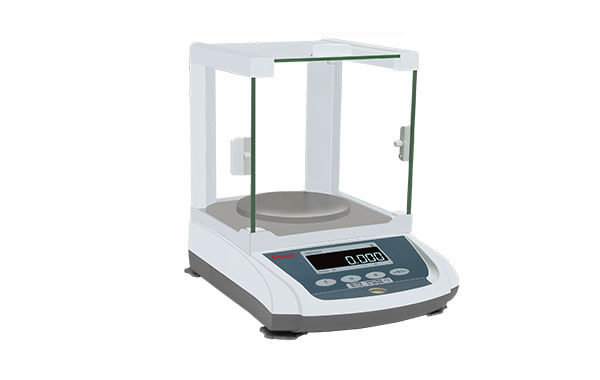

Precision Weighing Balance
PG/FB
| TECHNICAL SPECIFICATION | ||||
| MODEL No. | FB-200 | FB-300 | FB-600 | FB-1000 |
| Maximum weighing capacity | 200g | 300g | 600g | 1000g |
| Readability | 0.001 g | 0.001 g | 0.005 g | 0.01 g |
| Display resolution | 2,00,000 | 3,00,000 | 1,20,000 | 1,00,000 |
| Platter Size | Dia 110 mm | Dia 110 mm | Dia 110 mm | Dia 150 mm |
| Draft Shield | Included (Standard) | Included (Standard) | Included (Standard) | Optional accessory |
| MODEL No. | FB-600 | FB-2000 | FB-3000 | FB-10000 | FB-34000 |
| Maximum weighing capacity | 600g | 2000g | 3000g | 10000g | 34000g |
| Readability | 0.001 g | 0.01 g | 0.01 g | 0.1 g | 0.5 g |
| Display resolution | 3,00,000 | 2,00,000 | 3,00,000 | 1,00,000 | 68,000 |
| Platter Size | Dia 110 mm | Dia 150 mm | Dia 150 mm | 205 x 250 mm | 205 x 250 mm |
| Draft Shield | Included (Standard) | Optional accessory | Optional accessory | Not applicable | Not applicable |
| Technology | Magnetic Force Restoration Technology (MFRT) |
| Calibration method | Automatic software calibration (External weight) |
| Operating temperature | +10°C to +40°C |
| Tare range | Full capacity |
| Sensitivity drift (20°C to 40°C) | +/- 5ppm/°C |
| Repeatability/Verification interval Linearity | +/- 1d / +/- 2d |
| Diplay Type | Green Vacuum Fluorescent Display(VFD) |
| Dimensions without draft shield (Width x Depth X Height) | 190 mm x 275 mm x 85 mm (table-top) / 257 mm x 350 mm x 97 mm (PG 10000 & PG 34000) |
| Display Digit/Size | 7 Digits / 13 mm |
| Approx. gross weight (balance only) | 2 to 2.3 kg (table-top) / 6.4 kg (PG-10000 & PG-34000) |
| Power supply -AC/DC adaptor | Input – 230V AC, 50Hz Output – 6.9V DC @ 1.5A, Max Watt – 13W |
| W & M classification | Class II (PG Series) Class I (FB Series) |
| Processor | Digital 8 bit micro- computer |
