Overview

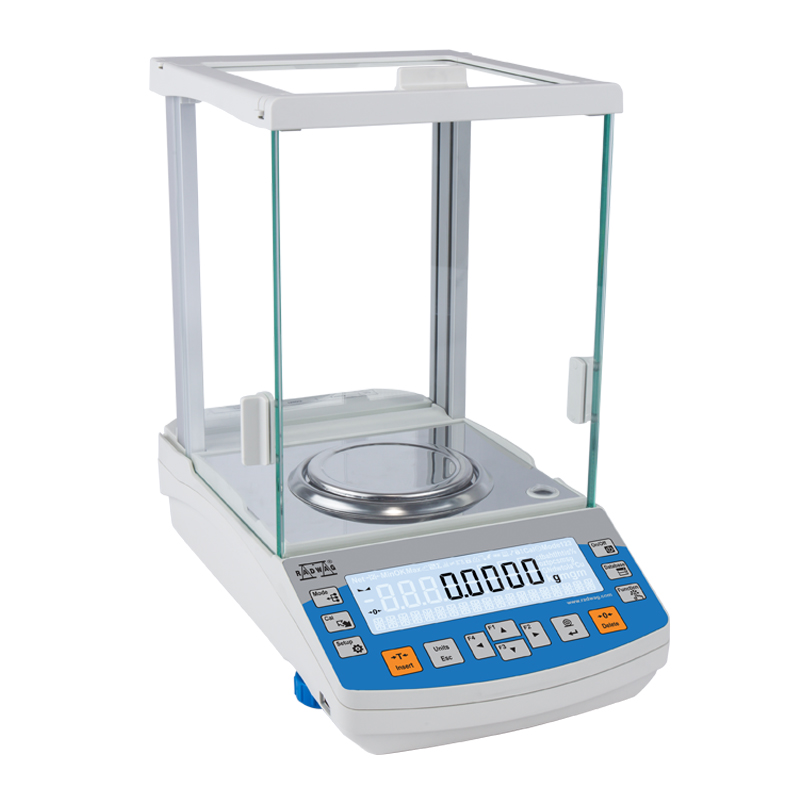

Balance of the AS R2 Plus series is a standard analytical weighing device of the SYNERGY LAB line. The AS R2 Plus is exceptional due to a range of modern constructional and system solutions that guarantee reliability, precision and accuracy of measurement, and make everyday operation easy.

Ergonomic Mechanical Design:-The latest AS R2 Plus analytical balance features spacious weighing chamber, and the open-door clearance facilitates easy access to the weighing pan. With this it is possible to use laboratory glassware of various sizes. New aluminium base is a guarantee for weighing system stability.Dual-CLICK system allows tool-free assembly and disassembly of the weighing chamber, and a special design of guides for weighing chamber panes (no rims) makes keeping the device clean convenient.

Levelling System:-Standard AS R2 Plus balances are equipped with a levelling device located at the front of the weighing chamber, which facilitates level control.Levelling operation is now simplified and easier due to the reduced quantity of adjustable supporting points (2 points).

ALIBI Memory:-Data safety is ensured by the ALIBI memory integrated into AS R2 balances, which enables record of up to 100 000 weighings. ALIBI guarantees continuity of data collection over a long period of time.

Communication Interfaces:-The functionality of AS R2 Plus balances can be expanded using the following communication interfaces: USB-A, USB-B, RS 232, Ethernet, Wi-Fi® (option). The additional USB port located at the front of the balance enables easy and fast communication with the USB flash drive, it is possible to connect additional devices via this port too.

Semi-Micro Balance
AS R2 Plus

Analytical Balance
AS R2 Plus

TECHNICAL SPECIFICATION
MODEL No. AS 82/220.R2 Plus AS 120.R2 Plus AS 220.R2 Plus AS 310.R2 Plus
Maximum Capacity[Max] 82 / 220 g 120 g 220 g 310 g
Minimum load 1 mg 1 mg 10 mg 10 mg
Readability [d] 0.01 / 0.1 mg 0.01 mg 0.01 mg 0.01 mg
Tare range -220 g -120 g -220 g -310 g
Standard repeatability [5% Max] 0.01 mg 0.01 mg 0.06 mg 0.07 mg
Standard repeatability [Max] 0.06 mg 0.025 mg 0.07 mg 0.01 mg
Standard minimum weight (USP) 20 mg 20 mg 120 mg 140 mg
Standard minimum weight (U=1%, k=2) 2 mg 2 mg 12 mg 14 mg
Permissible repeatability [5% Max] 0.02 mg 0.02 mg 0.09 mg 0.12 mg
Permissible repeatability [Max] 0.1 mg 0.04 mg 0.01 mg 0.15 mg
Linearity ±0.05 / ±0.2 mg ±0.07 mg ±0.2 mg ±0.2 mg
Stabilization time max 2 s max 2 s max 2 s max 2 s
Adjustment(Calibration) internal (automatic) internal (automatic) internal (automatic) internal (automatic)
OIML Class I I I I
Display LCD (Backlit) LCD (Backlit) LCD (Backlit) LCD (Backlit)
Communication interface 2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi® 2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi® 2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi® 2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi®
Power supply 100 ÷ 240 V AC 50 / 60 Hz 100 ÷ 240 V AC 50 / 60 Hz 100 ÷ 240 V AC 50 / 60 Hz 100 ÷ 240 V AC 50 / 60 Hz
Power consumption max. 4 W 4 W 4 W 4 W
Operating temperature +10 ÷ +40 °C +10 ÷ +40 °C +10 ÷ +40 °C +10 ÷ +40 °C
Operating temperature change rate ±0.3°C/1h (±1°C/8h) ±0.3°C/1h (±1°C/8h) ±0.3°C/1h (±1°C/8h) ±0.3°C/1h (±1°C/8h)
Relative humidity 40% ÷ 80% 40% ÷ 80% 40% ÷ 80% 40% ÷ 80%
Relative humidity change rate ±1%/h (±4%/8h) ±1%/h (±4%/8h) ±1%/h (±4%/8h) ±1%/h (±4%/8h)
Weighing pan dimensions ø90×85 mm< ø90×85 mm< ø100 mm< ø100 mm<
Packaging dimensions 495×400×515 mm 495×400×515 mm 495×400×515 mm 495×400×515 mm
Net Weight 7.3 kg 7.3 kg 7.3 kg 7.3 kg
Gross weight 9.3 kg 9.3 kg 9.3 kg 9.3 kg
